Building Workflows

Workflows in ConvoFlow are visual representations of conversation flows. This guide covers best practices and patterns for building effective workflows.

Workflow Basics

Every workflow must include:

• QueryNode: Entry point for user input (exactly one required)
• ResponseNode: Exit point for final output (exactly one required)
• Processing Nodes: One or more nodes that process the data

Common Workflow Patterns

Linear Flow

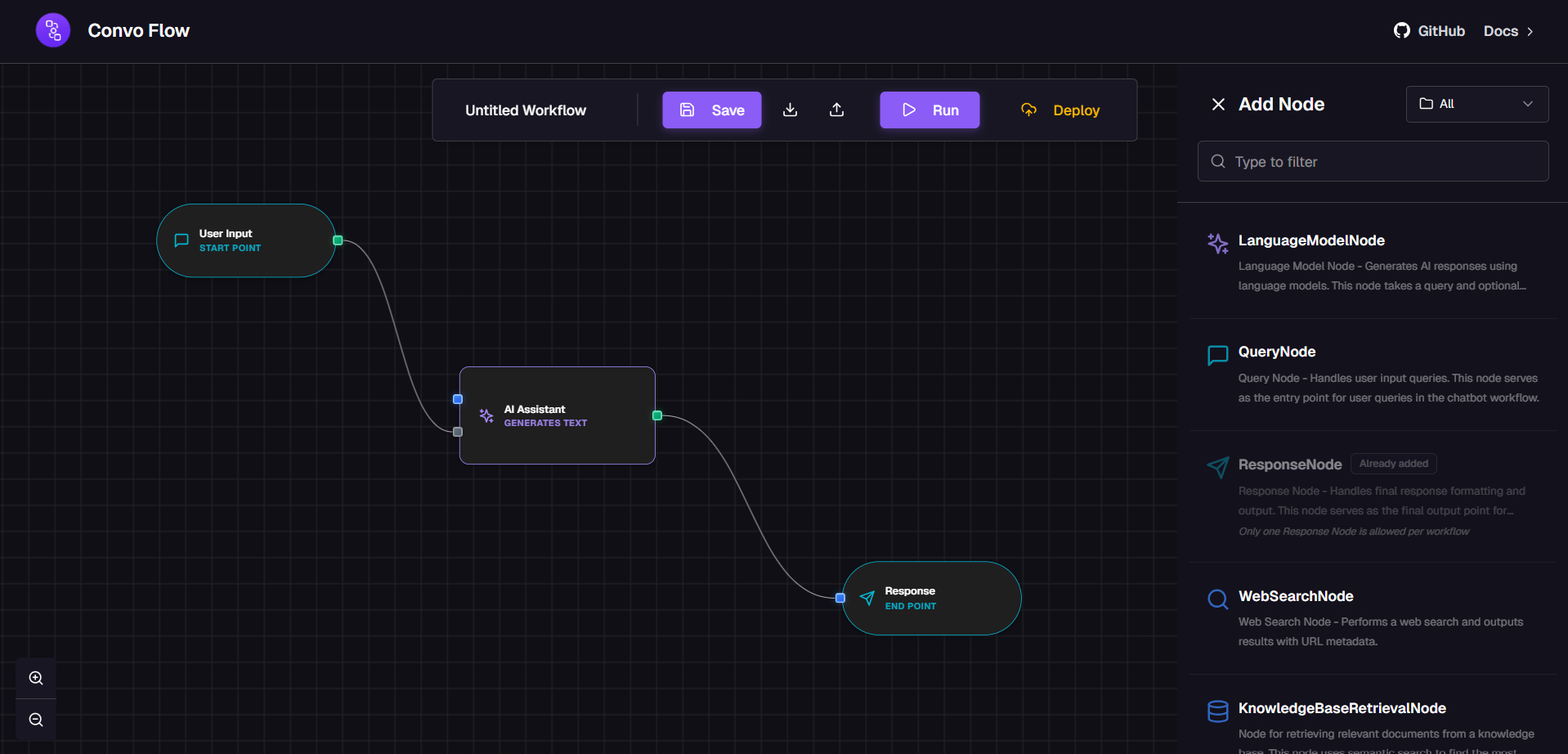

Simple sequential processing. Here's an example of a basic workflow with sidebar:

Conditional Branching

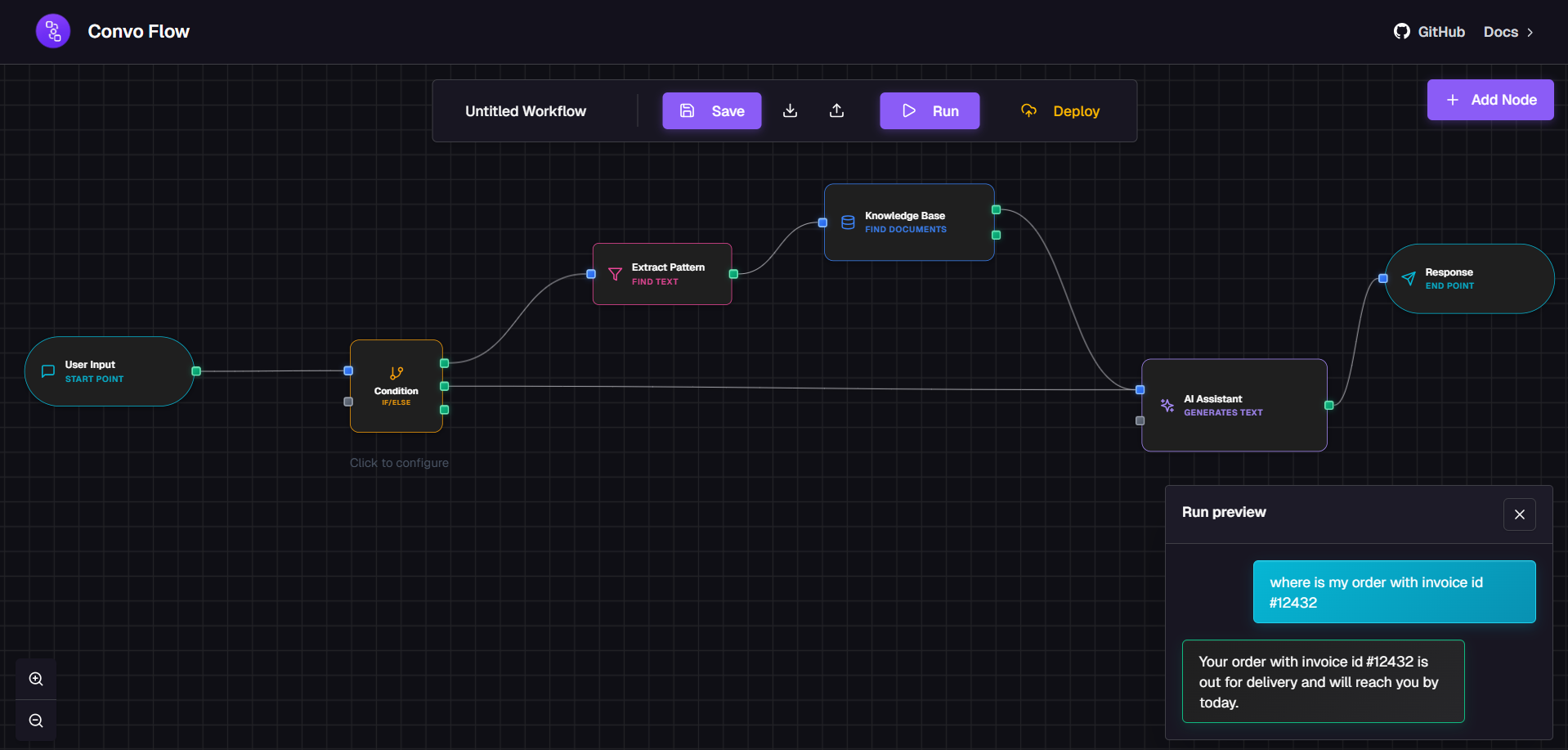

Use ConditionalNode to create different paths based on conditions. Here's an example of a condition-based workflow:

Parallel Processing

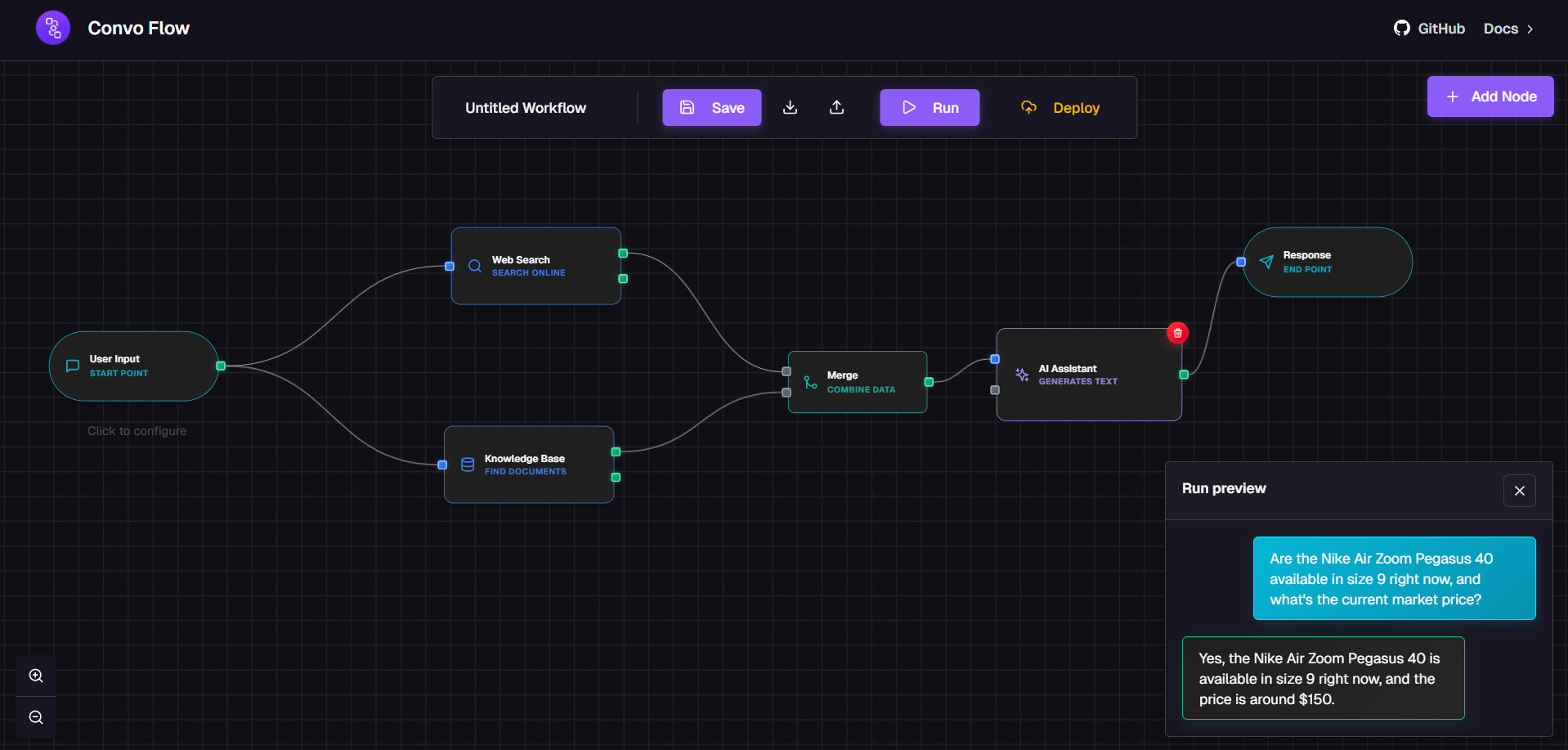

Process multiple paths simultaneously and merge results. Here's an example of a parallel workflow:

Best Practices

• Keep it simple: Start with simple workflows and add complexity gradually
• Use meaningful names: Name your workflows and nodes clearly
• Handle errors: Consider error paths and edge cases
• Test frequently: Test your workflow as you build it
• Document: Add comments or documentation for complex logic

Tips for Complex Workflows

• Break complex workflows into smaller, reusable sub-workflows
• Use MergeNode to combine outputs from multiple nodes
• Use DebugNode to inspect data at different points
• Save intermediate results for debugging
